Products details

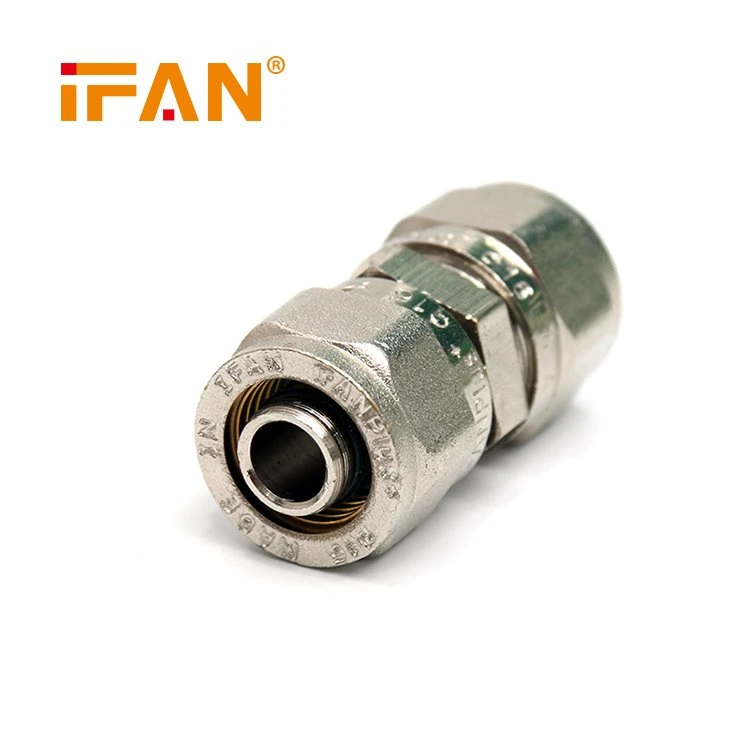

IFAN PEX Brass Reducing Socket

IFAN factory can produce 16-32mm all size pex brass compression fitting, also have some special size for south Africa.

IFAN factory has a strict quality control system, during the production process, we will inspect raw materials, semi-finished products and finished products, and before loading we will do the final test to the products to ensure the quality.

Description:

Products Name	PEX Brass Reducing Socket	Pressure	PN 20
Material	58-3 brass	Packing	small IFAN carton
Technical	Casting	Connection	thread
Max Temperature	+95°c	Color	Chrome plated, double

Features:

1. Safety material: 100% new cw617n brass material, high Cu content 57-59%, low Pb content 1.6-2.5%, more healthy and environmental friendly.

2. Standard thread: Female and male thread can perfectly fit GB, NPT, BSPT thread.

3. Easy to install: The pipe can be easily connected with a simple wrench tool.

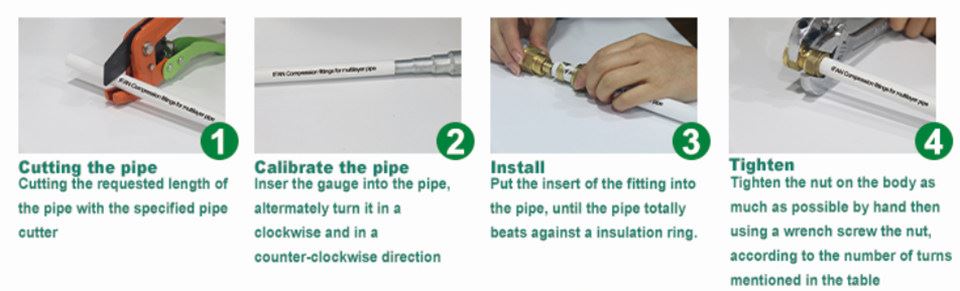

How to install

1. Cut the pipe to wanted length, round and bevel the pipe end with a reamer，

2. Choose the right size brass compression fitting for the pipe, the pipe and fitting specification should be compatible.

3. Put the end of pipe go through the nut then the ring.

4. Straight put the insert into the pipe, until the black rubber ring can not be seen.

5. Tighten the nut on the body as much as possible by hand then using a wrench screw the nut.

6. Then finish the installation.
