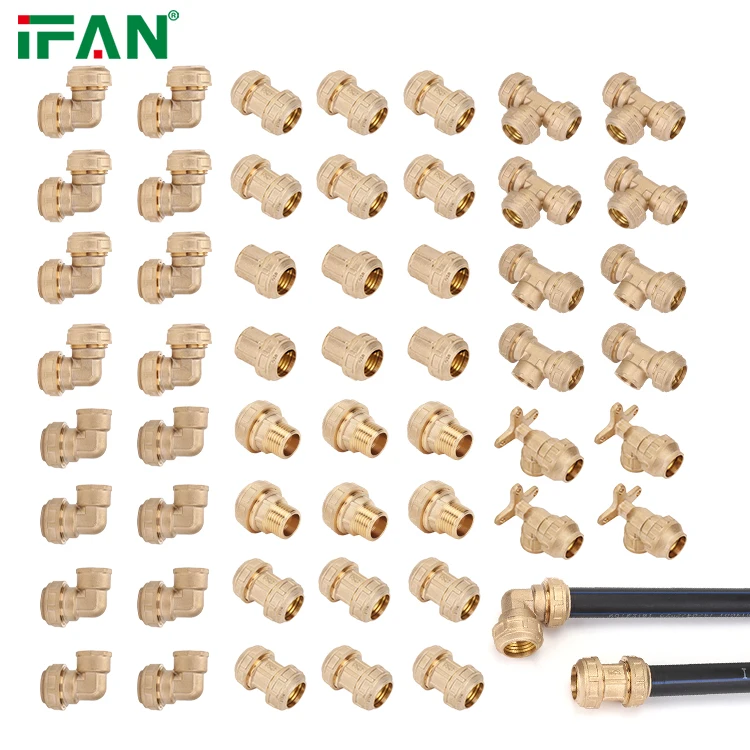

IFAN Brass PE Compression Fitting Female Elbow
Product size:20-63mm
Product application: Irrigation system
Product color: Blue or customizable
Customization: Supported
Sample: Free
Packaging: IFAN standard packaging
Send Inquiry
Product Details ofIFAN Brass PE Compression Fitting Female Elbow
IFAN Brass PE Compression Fittings Female Elbow: Key Analysis
1. Product Positioning & Core Functions
The IFAN Brass PE Compression Female Elbow is designed for PE piping systems, enabling 90° directional changes via compression fitting technology. It is ideal for water supply, gas distribution, and industrial fluid transfer applications.IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Facebook Website:www.facebook.com.
Key Features:
Leak-Proof Sealing: Combines a compression ring (ferrule) and nut to create a tight mechanical seal between brass fittings and PE pipes.
High-Pressure Resistance: Brass construction (≥57% copper content) and precision forging ensure durability under 16–32 bar pressure.
Universal Compatibility: Supports DN16–DN32 (16mm–32mm) pipe diameters, connecting PE pipes to metal pipes (e.g., copper) for complex layouts.
2. Technical Specifications & Certifications
| Parameter | Details |
|---|---|
| Material | Brass body (≥57% copper), stainless steel compression ring (selected models) |
| Pressure Range | 16–32 bar (32 bar for high-pressure models) |
| Temperature Range | -20°C to 120°C (suitable for low-temp and hot water systems) |
| Connection Type | Compression fitting (requires specialized tooling for assembly) |
| Certifications | ISO9001:2015, CE, DVGW (German Technical and Scientific Association for Gas and Water), EN1254-3 (compression fitting standard) |
3. Applications & Advantages
1. Residential Water Supply Systems
Advantage: Corrosion-resistant brass reduces long-term maintenance costs.
Example: Connects PE mains to faucets or water heaters for secure 90° turns.
2. Gas Distribution Networks
Advantage: DVGW-certified for gas safety, withstands 32 bar pressure for post-meter gas lines.
Example: Links PE gas pipes to metal valves for leak-free transitions.
3. Industrial Fluid Transfer
Advantage: Operates in -20°C environments, suitable for chemical and agricultural irrigation systems.
Example: Connects PE irrigation pipes to metal pumps for pressure-resistant routing.
4. Selection Guidelines & Key Considerations
1. Model Matching
Choose the correct size based on pipe diameter (e.g., DN20 for 20mm PE pipes).
Select 32 bar models for high-pressure gas applications; 16 bar suffices for standard water systems.
2. Installation Requirements
Tooling: Use dedicated compression tools (e.g., crimping pliers) to ensure uniform ferrule deformation.
Procedure: Cut PE pipe ends flat, insert into the elbow, and verify insertion depth (typically 1.5× pipe diameter).
3. Quality Verification
Check for certifications (CE, DVGW) to avoid non-compliant products.
Conduct practical tests (e.g., hydrostatic or air pressure tests) to confirm sealing performance.
