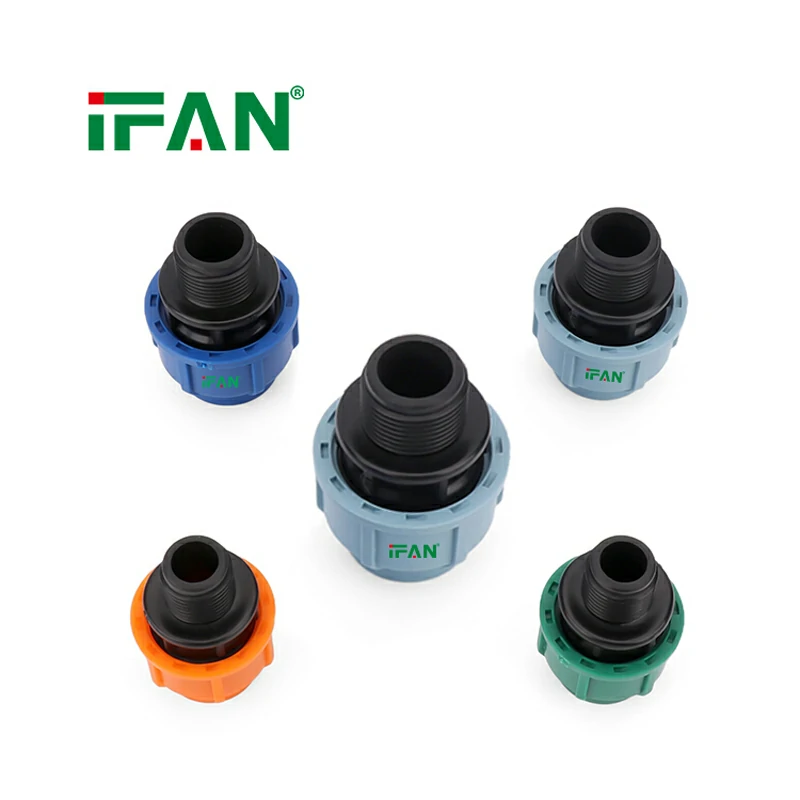

IFAN Durable Water Supply PP Compression Fittings

Standardized Performance Baseline: 100 psi at 180°F

The definitive pressure benchmark for PP Compression Fittings is anchored at 100 psi (approximately 6.9 bar) under a service temperature of 180°F (82°C). This parameter establishes the maximum sustained working pressure that polypropylene assemblies are engineered to endure in hot-water applications, and it is purposefully calibrated to match the pressure rating of corresponding PP piping, thereby ensuring seamless hydraulic compatibility throughout the system. A typical compression coupling operating at this combined thermal and hydraulic condition will maintain its sealing effectiveness and structural soundness at the full 100 psi level without degradation.

Augmented Mechanical Capacity at Ambient Thermal State (73°F)

When situated at standard room temperature - nominally 73°F (23°C) - the polypropylene matrix manifests significantly amplified tensile and compressive fortitude, thereby enabling the fittings to withstand substantially elevated hydraulic loads. A considerable proportion of fittings within this product category carry pressure ratings spanning the 150–200 psi band under these reduced thermal conditions. In numerous instances, this ambient-temperature capability transcends the burst threshold of the companion piping, effectively rendering the fitting a non-limiting component within the system's overall pressure hierarchy during conventional cold-water service.

Rupture Boundaries and Engineered Safety Reserves

Methodical destructive testing reliably delineates burst pressures clustering between 400 and 600 psi - equivalent to a safety coefficient of four to six times the nominal working pressure. This deliberately expansive safety cushion shields the assembly against ephemeral hydraulic perturbations, including water-hammer impulses and pump-startup transients, which possess the capacity to momentarily propel system pressure well beyond steady-state equilibrium. The pronounced differential between the rated working pressure and the ultimate failure point constitutes an intentional engineering safeguard that reinforces systemic robustness and markedly attenuates the likelihood of precipitous joint disintegration.

Thermally Contingent Derating Framework

Polypropylene demonstrates a pronounced inverse correlation between thermal loading and pressure-holding capacity: escalating temperatures necessitate proportionate diminution of the allowable working pressure. At a temperate 140°F (60°C), the derated threshold may still approximate 120 psi. However, as thermal conditions encroach upon the polymer's upper boundary - exemplified by 200°F (93°C) - the permissible pressure regresses to a band of 60–80 psi, a manifestation of the material's progressive viscoelastic attenuation. Engineering practitioners are incumbent upon applying these derating protocols with scrupulous precision when delineating fittings for high-temperature conduits, thereby guaranteeing that in-service parameters remain firmly ensconced within the empirically validated performance domain.

Diameter-Dependent Rating Differentiation

Pressure ratings are not uniform throughout the product portfolio; they demonstrate notable sensitivity to fitting diameter. Smaller-diameter fittings, advantaged by a more favorable wall-thickness-to-bore ratio and diminished hoop-stress concentration, frequently support higher pressure ceilings than their larger equivalents. In contrast, fittings at the upper end of the dimensional spectrum - such as 50mm and 63mm variants - may be assigned slightly reduced ratings due to the heightened mechanical stresses intrinsic to their larger cross-sections. Pressure specifications are consequently diameter-specific, and practitioners should consult the manufacturer's size-differentiated rating tables rather than assuming a universal value across all dimensions.

Illustrative Scenario: Conventional Residential Plumbing

A prototypical domestic water distribution network customarily functions at a supply pressure approximating 60 psi, with household hot water thermostatically regulated near 120°F. Under these conjoined thermal-hydraulic conditions, PP Compression Fittings - whose pressure rating at temperatures surpassing 120°F remains comfortably in excess of 100 psi - operate with generous functional reserve. The fittings effortlessly accommodate the superimposed thermal and hydraulic loads without encroaching upon their performance ceiling, thereby ensuring protracted, maintenance-free reliability for the duration of the system's operational life.

Illustrative Scenario: Commercial Hot-Water Recirculation Loop

Within a commercial facility wherein the hot-water recirculation circuit operates at 80 psi and 140°F, the fittings reside securely within their sanctioned operational envelope. The derated capacity of approximately 120 psi at 140°F affords a 50% safety cushion above the actual 80 psi working pressure, corroborating that PP Compression Fittings constitute a technically sound and risk-mitigated selection for mid-temperature commercial plumbing infrastructure.

Illustrative Scenario: Hydronic Heating at Upper Thermal Threshold

A hydronic heating circuit functioning at the fitting's maximum thermal boundary of 180°F, coupled with a system pressure of 60 psi, aligns precisely with the published specification of 100 psi at 180°F. With 40 psi of residual capacity remaining, the compression joints preserve a formidable safety factor, validating their suitability for residential and light-commercial radiant-floor heating or baseboard-radiator installations operating within this thermal regime.

Pre-Market Hydrostatic Qualification Protocol

Prior to commercial release, PP Compression Fittings undergo comprehensive hydrostatic qualification, wherein each component is pressurized to 1.5 times its designated nominal working threshold. This intensified proof-test serves as a decisive quality gate, confirming that the assembled fitting can withstand transient hydraulic shocks and prolonged operational stresses far exceeding routine service conditions - all without exhibiting plastic deformation, compression-joint migration, or fluid seepage. Successful passage through this exacting validation sequence guarantees that the fitting will deliver unwavering structural dependability and a hermetic seal throughout its anticipated service life.

Adherence to Brand-Specific Technical Documentation

System specifiers and installation technicians are required to reference the precise pressure-rating documentation furnished by the individual fitting manufacturer, as performance characteristics may vary across brands due to distinctions in polymer resin formulation, reinforcement methodology, wall-profile architecture, and production tolerances. Rigorous compliance with the manufacturer's published technical directives - encompassing prescribed installation torque values, temperature-contingent derating curves, and approved pipe-compatibility matrices - is indispensable for achieving the advertised performance benchmarks and preventing premature joint degradation or failure.

Authorized Operating Envelope and Over-Pressurization Consequences

Under no conceivable operational scenario shall the system's peak working pressure be permitted to transcend the fitting's officially promulgated maximum rating. Sustained excursion beyond this prescribed threshold subjects the compression assembly to inordinate mechanical burden, with the potential to precipitate ferrule displacement beyond its designated retaining abutment, thread seizure or helical degradation of the compression nut, or even total structural disintegration of the fitting housing. When utilized exclusively within the stipulated operational confines, PP Compression Fittings afford a robust and reliable fluid-tight interface; in stark contrast, any transgression of these delineated boundaries progressively compromises the meticulously engineered safety margins and engenders an unacceptably elevated risk of catastrophic system compromise.

Consolidated Pressure-Performance Synopsis

In line with prevailing industry conventions, PP Compression Fittings carry a maximum continuous working pressure of 100 psi at an elevated service temperature of 180°F (82°C). Under ambient conditions near 73°F (23°C), the pressure-handling capacity rises markedly, frequently surpassing 150 psi - a direct reflection of polypropylene's enhanced tensile and compressive resilience at lower thermal states. The ultimate burst pressure, representing the point of irreversible structural failure, typically ranges from four to six times the rated working pressure, thereby providing a substantial safety buffer against water-hammer events and other transient pressure surges. Critically, temperature-dependent derating must be applied: as service temperature increases, the permissible operating pressure must be proportionally curtailed to preserve joint integrity. When fittings are selected in accordance with the application's specific thermal and hydraulic demands, they deliver robust, long-term reliability across residential plumbing systems, commercial water-distribution networks, and light-industrial process installations.
