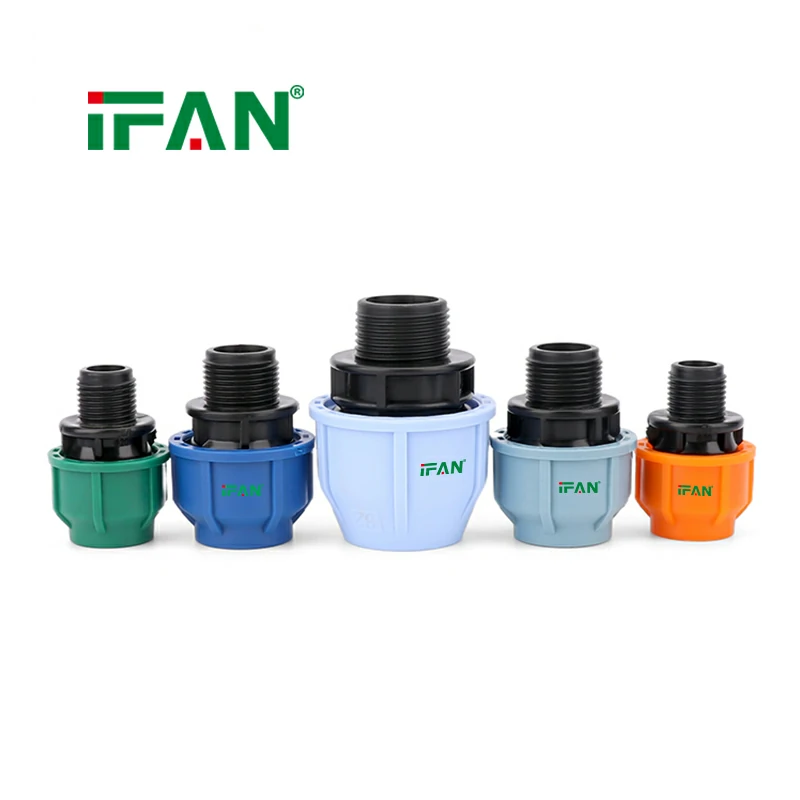

IFAN Made in China PP Compression Fitting

Fundamental Operating Mechanism

PP Compression Fittings establish pipeline continuity through an exclusively mechanical compression paradigm, entirely independent of thermal fusion or chemical bonding. The operative sequence commences when the compression nut - threaded onto the fitting body's external helix - is torqued in a clockwise direction. This rotational input is converted into axial compressive force, which drives the sealing ferrule radially inward against the pipe's outer circumference. A standard wrench provides the requisite leverage to achieve adequate torque, transforming simple mechanical effort into a pressure-rated, leak-tight joint without any ancillary equipment or consumable materials.

Tripartite Component Architecture

Each compression fitting comprises three functionally interdependent elements whose coordinated action produces the sealed connection. The fitting body - precision-molded from polypropylene - constitutes the structural foundation, incorporating an internal pipe stop that ensures consistent insertion depth and a machined conical sealing seat that receives the compressed ferrule. The compression nut, threaded onto the body's exterior, serves as the force-transmission component, translating rotational torque into the axial loading necessary for sealing. The ferrule (alternatively designated as the gripping ring, olive, or sealing collet) is the active sealing element - typically fabricated from polypropylene, EPDM elastomer, or hybrid polymer composites - that undergoes controlled radial deformation under nut compression to envelop the pipe surface. The synergistic interaction of these three components is indispensable to the fitting's pressure-bearing capability.

Assembly Sequence - Phase I: Pipe Preparation and Insertion

The installation procedure initiates with precise pipe-end preparation: the pipe must be severed with a sharp cutter to produce a perfectly square, burr-free terminus, as any angular deviation or surface irregularity will compromise sealing integrity. Following deburring, the compression nut is slid onto the pipe first, followed by the ferrule, with both components oriented in the correct directional alignment. The pipe end is then advanced axially into the fitting body until it contacts the internal stop - a critical step that guarantees the pipe is positioned at the proper depth for effective ferrule engagement. Incomplete insertion is among the most frequent installation errors and must be rigorously avoided.

Assembly Sequence - Phase II: Ferrule Positioning

With the pipe fully seated, the ferrule must be advanced along the pipe axis until it rests squarely against the fitting body's conical seat. Correct ferrule placement is paramount: the ferrule must be concentric with the pipe, free of tilting or lateral offset, and properly seated within the body's receiving taper. Any misalignment at this stage will result in uneven compression, incomplete sealing, and a heightened probability of joint failure under operating pressure. Visual inspection prior to nut tightening is strongly recommended to confirm proper ferrule orientation.

Assembly Sequence - Phase III: Nut Torquing and Compression Activation

The compression nut is then threaded onto the fitting body by hand until snug, after which an appropriately sized wrench is employed to apply the final tightening torque. As the nut advances, it forces the ferrule into the body's conical seat, inducing controlled radial compression of the ferrule against the pipe's outer surface. The applied torque must be sufficient to achieve full ferrule deformation and seal activation, yet restrained enough to avoid thread stripping, nut cracking, or pipe wall crushing. The tactile transition from free rotation to firm resistance serves as the primary indicator that adequate compression has been achieved.

Dual-Action Sealing Mechanism

The compression fitting's sealing efficacy derives from a dual-action mechanism activated simultaneously during nut torquing. First, the ferrule undergoes slight plastic deformation, causing its inner edge to bite into the pipe's outer surface - this creates a mechanical grip that resists axial pull-out and prevents joint disengagement under pressure. Second, the ferrule's outer surface is pressed firmly against the fitting body's conical sealing seat, establishing a secondary hydrostatic barrier that blocks fluid migration along the ferrule-body interface. These two sealing actions - the pipe-gripping bite and the body-seat compression - operate in concert to produce a redundant, pressure-resistant seal whose reliability is validated across decades of field deployment in potable water, hydronic heating, and irrigation applications.

Illustrative Scenario: Straight Coupling Assembly

Consider a practitioner tasked with establishing a continuous linear run by uniting two discrete sections of polypropylene piping. Employing a straight compression coupling, the installer first verifies that each pipe extremity has been squared and deburred, then advances both pipe ends fully into the coupling body until they abut the central internal stop. The compression nuts - pre-positioned on each pipe along with their respective ferrules - are then threaded onto the coupling body and progressively tightened. The resultant assembly yields a robust, pressure-rated joint whose integrity derives entirely from mechanical compression rather than molecular fusion, providing a dependable connection suitable for permanent service.

Illustrative Scenario: Valve Interface Connection

In a complementary application, a compression fitting facilitates the integration of an isolation valve into an existing polypropylene pipeline. The valve - whether equipped with threaded female ports or a compatible compression-end configuration - is aligned with the pipe axis, and the compression nut is advanced to draw the ferrule into its sealing position. Proper torque application ensures a leak-tight seal at the valve interface, a critical juncture where future maintenance access may be required. The mechanical nature of the compression connection proves particularly advantageous here, as it permits straightforward disassembly should the valve require replacement or servicing, without necessitating pipe section removal or re-fusion.

Elimination of Thermal and Chemical Bonding Agents

A defining characteristic of the compression fitting methodology is its exclusively mechanical mode of operation. The joining process demands no heat source - eliminating hot-work permits, fire watch protocols, and burn hazards - nor does it require solvent cements, primer fluids, or chemical adhesives of any kind. This absence of thermal and chemical dependencies not only simplifies the installation workflow but also removes associated ventilation requirements, curing wait times, and material compatibility concerns, rendering compression fittings suitable for confined spaces, occupied buildings, and environments where open-flame work is prohibited.

Minimal Tooling Requirements

The entire assembly procedure can be executed with a single hand tool: an appropriately sized adjustable wrench or open-end wrench matched to the compression nut dimensions. No fusion machines, calibration timers, pipe reamers beyond basic deburring tools, or specialized jigs are necessary. This dramatically reduced tooling burden translates to lower equipment costs, faster crew mobilization, and the ability to perform installations or emergency repairs with minimal logistical preparation - a practical advantage in both planned construction and unplanned maintenance scenarios.

Torque Application Guidelines and Overtightening Risks

Achieving a reliable seal requires the application of firm, measured torque to the compression nut - sufficient to fully seat the ferrule and compress the sealing element, but not so excessive as to induce mechanical damage. Overtightening can strip the polypropylene threads, crack the nut or body, distort the ferrule beyond its elastic recovery range, or crush the pipe wall, any of which compromises joint integrity and may precipitate immediate or delayed failure. The recommended practice is to tighten until a distinct resistance is felt and the nut can no longer be advanced by hand force alone, then apply a final incremental turn with the wrench - typically no more than one-quarter to one-half turn beyond hand-tight, depending on manufacturer specifications. Experience and tactile feedback are invaluable guides in developing appropriate torque judgment.

Consolidated Operational Summary

PP Compression Fittings establish secure pipeline connections through a purely mechanical compression mechanism: a threaded nut, when torqued, drives a sealing ferrule radially inward against the pipe's outer surface, simultaneously generating a hydrostatic seal and a mechanical grip that resists axial pull-out. The pipe must be inserted to its full designated depth to ensure adequate engagement within the fitting body. The process requires no heat, no adhesives, and no specialized equipment beyond a standard wrench, making it one of the most accessible and versatile joining methods available for polypropylene piping systems. From residential water supply branches and commercial valve tie-ins to agricultural irrigation networks and temporary bypass installations, compression fittings represent a trusted, field-proven solution for situations demanding speed, simplicity, and reliable performance without the complexity of thermal fusion.
