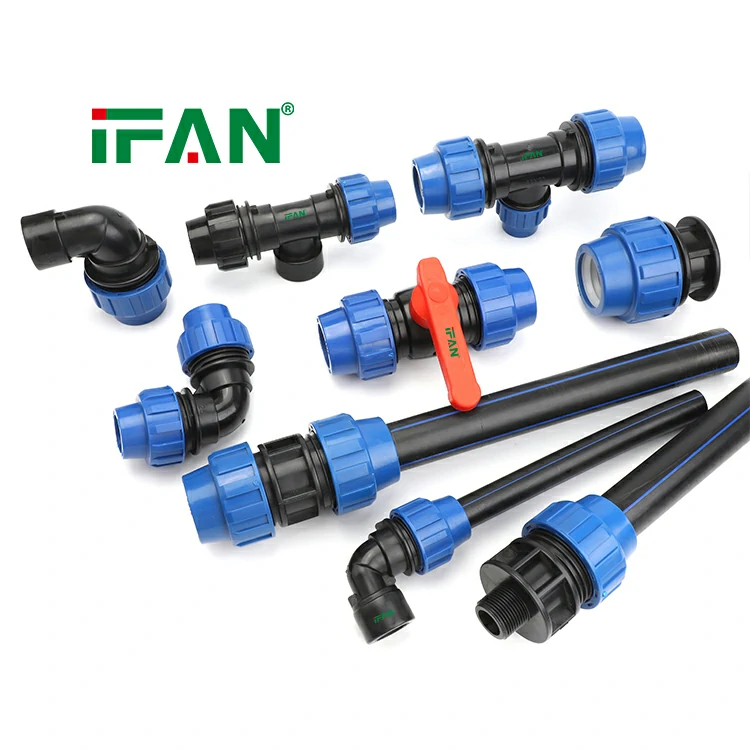

Manufacture Supply HDPE Fitting

Understanding SDR: The Standard Dimension Ratio

The Standard Dimension Ratio (SDR) is the single most important specification determining a pipe's pressure capacity and wall thickness. SDR is defined as the ratio of the pipe's outside diameter (OD) to its wall thickness (WT): SDR = OD ÷ WT .A lower SDR number indicates a thicker pipe wall, which provides higher pressure resistance. For example, SDR 11 has thicker walls than SDR 17 because the ratio dividing OD by WT yields a lower number with a thicker wall.

Understanding the inverse relationship between SDR and wall thickness is crucial for buyers. For a given outside diameter, an SDR 11 pipe has roughly 55% thicker walls than an SDR 17 pipe, directly translating to higher pressure capacity but also higher material weight and cost. SDR values for HDPE pipes typically range from SDR 41 (thinnest wall, lowest pressure) through SDR 9 and SDR 7.4 (thickest wall, highest pressure) .

PE Material Grades: PE80 vs. PE100 vs. PE100 RC

The PE grade designation indicates the material's Minimum Required Strength (MRS) measured in megapascals (MPa) at 20°C over a 50-year service life. PE80 has an MRS of 8.0 MPa, meaning the material can sustain 8.0MPa of hoop stress for 50 years without failure. PE100 has an MRS of 10.0 MPa, providing 25% higher strength than PE80. PE100 RC (Resistant to Crack) adds improved slow crack growth resistance for demanding applications like rocky terrain or trenchless installation.

For buyers selecting material grades, PE100 is the current industry standard for pressure pipe applications due to its higher strength and lower material cost per unit of pressure capacity.For a given pressure requirement, PE100 can achieve the same PN rating as PE80 with a thinner, lighter wall-reducing material cost and shipping weight. PE80 remains suitable for medium and low-pressure pipe networks where budget constraints outweigh material efficiency.

PN Pressure Ratings: What PN10, PN16, and PN20 Actually Mean

PN (Nominal Pressure) indicates the maximum working pressure in bars that the pipe can handle continuously at 20°C. PN10 = 10 bar (approximately 145 psi), PN16 = 16 bar (232 psi), and PN20 = 20 bar (290 psi) .These ratings are derived from the combination of PE material grade and SDR. The Plastics Pipe Institute provides standard SDR-PN correlation tables that apply globally.

The exact relationship between SDR and PN varies by material grade. For PE100 pipe, SDR 41 delivers PN4 (low-pressure drainage), while SDR 11 delivers PN16 (standard water distribution), and SDR 9 delivers PN20 (high-pressure systems). For PE80 pipe, the same SDR yields lower PN ratings; SDR 11 for PE80 delivers PN12.5 instead of PN16 .

Matching Pipe and Fitting Pressure Ratings

A critical requirement that causes frequent field failures involves matching fitting pressure ratings to pipe pressure ratings. A fitting's pressure rating must equal or exceed the pipe pressure rating. Installing a PN10 fitting on a PN16 pipe creates a weak point that will fail first under pressure load . The fitting's SDR value must match the pipe's SDR precisely to ensure homogeneous fusion and consistent strength across the joint.

For electrofusion fittings in particular, the fitting's SDR compatibility must be verified before installation. Electrofusion fittings manufactured for SDR 11 pipe cannot be used with SDR 17 pipe because the wall thickness difference creates an uneven fusion zone. Always match SDR values between fitting and pipe to ensure complete material bonding.

Temperature Derating: Pressure Decreases with Rising Temperature

All PN ratings are stated at 20°C reference temperature. As operating temperature increases, the allowable working pressure decreases because the polyethylene material softens. ISO 4427 defines specific derating factors applied above 20°C up to the maximum continuous operating temperature of 45°C. For example, a pipe rated PN16 at 20°C may only deliver PN10 to PN12 at 45°C depending on the exact material formulation.

For hot water industrial applications or solar thermal systems where temperatures may reach 60°C, always consult the manufacturer's temperature derating curve before final pipe selection.

Wall Thickness Selection: Balancing Pressure and Flow

Wall thickness selection involves trade-offs that project engineers must evaluate. Thicker walls (lower SDR) provide higher pressure ratings but also reduce the internal diameter for the same nominal pipe size. A DN110 SDR 11 pipe has less interior space than a DN110 SDR 17 pipe because the SDR 11 wall is thicker. This reduced internal area translates to lower flow capacity and higher pumping energy costs over the system's lifetime.

For applications with generous pressure margins and flow requirements, selecting a lower PN rating reduces material cost and increases flow. For systems operating near maximum pressure limits or in high-surge environments, selecting a higher PN rating provides a crucial safety margin at modest cost increase.

ISO 4427 Compliance Verification

ISO 4427 is the primary international standard governing HDPE piping systems for water supply. The standard specifies raw material grade requirements (PE80 and PE100), pipe size series (SDR values), physical and chemical performance indicators, long-term hydrostatic strength verification, and technical requirements for connectors.ISO 4427 also establishes a complete marking and traceability system for quality assurance .

When purchasing HDPE pipe and fittings, always verify that the product carries ISO 4427 certification marks. The standard applies to operating temperatures of 0°C to 45°C and maximum working pressures up to 25 bar. For gas distribution applications, ISO 4437 provides analogous specifications for polyethylene systems carrying natural gas.

Summary

SDR equals OD ÷ WT; lower SDR numbers produce thicker walls and higher pressure ratings. PE80 has MRS 8.0 MPa; PE100 has MRS 10.0 MPa with 25% higher strength. PN ratings indicate bar pressure at 20°C, ranging from PN4 for drainage to PN25 for very high pressure applications. Matching SDR values between pipe and fitting is mandatory for proper fusion. Temperature derating reduces pressure capacity above 20°C up to the maximum 45°C operating limit specified by ISO 4427.
