PEX AL PEX
Products details
The inner and outer layers of PEX AL PEX pipes are made of special polyethylene materials, which are clean, nontoxic and smooth. It can be used for more than long-term durability according to standards. The intermediate aluminum layer can be 100% isolated from gas penetration, and the pipe has the advantages of metal and plastic pipe at the same time, while the disadvantages of each are eliminated.
Specification
Place of original: Zhejiang, China
Connection: thread
Color: normal white,orange, grey color or customer welcome.
Size: normal size 1216, 1418, 1620 and so on
Application: water supply
Working temperature: about 95℃
Working pressure: PN16
Type: round pipe
Packing：100m or 200m for 1 roll
Aluminium technical

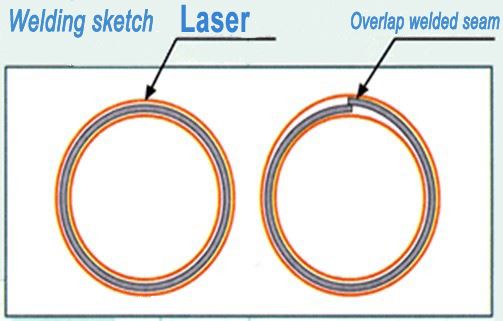

Packing Design for overlap and laser
Size Information
Size | Weight(g/m) | Packing(m/roll) |
1216 | 100 | 100 |
1418 | 119 | 100 |
1620 | 132 | 100 |
2025 | 203 | 100 |
2026 | 240 | 100 |
2632 | 305 | 100 |
Advantage of pex al pex Pipe
◎Long service life: under the working temperature of 70 ℃ and the working pressure of 1.0MPa, the long-term continuous service life is more than long-term durability according to standards; the normal temperature 20c service life is more than 100 years;
◎The cross linking degree is stable and even: the cross linking degree is stable, the inner and outer diameters of the pipes are unified, and the wall thickness is even in the longitudinal and transverse directions;
◎High strength pressure resistance: it can withstand 85 ° water temperature for a long time, because it contains seamless laser butt welding and aluminum layer of lap welding process, it can withstand 10 kg pressure range;
◎Good thermal conductivity: the coefficient of thermal conductivity is 0.45w/mk, 1.5 ~ 2 times of the coefficient of cross-linked polyethylene pipe, which is more conducive to the heat transfer between the pipe and the floor, and the heating system has higher thermal efficiency;
