In the intricate world of piping systems, brass ball valves play a pivotal role, offering durability, corrosion resistance, and precise flow control. Understanding their classification and types is essential for efficient system design and maintenance.IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Instagram Website: www.instagram.com.
I. Overview of Brass Ball Valves

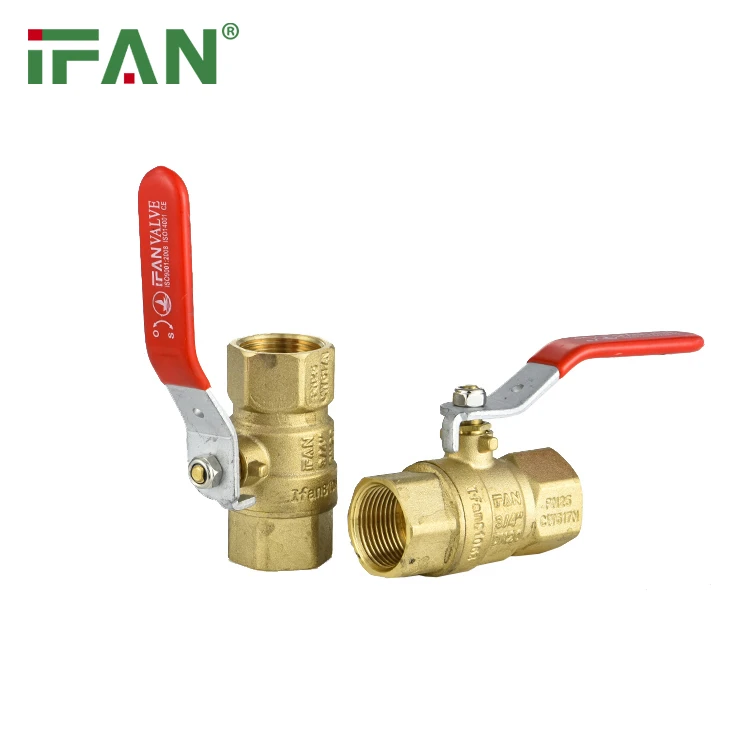

Brass ball valves are characterized by a spherical disc (ball) with a hole through its center, mounted inside a valve body. Rotating this ball aligns or misaligns the hole with the flow path, allowing for full or partial flow control. Their brass construction ensures strength while also resisting oxidation and providing a visually appealing finish.
II. Classification Based on Function
Two-Way Ball Valves
The most basic form, used to stop or start fluid flow in a straight line.
Three-Way Ball Valves
Offer more versatility, allowing fluid to be diverted between two outlet ports, ideal for changing flow directions.
Four-Way Ball Valves
Highly specialized, used in complex piping networks to connect four pipes, enabling fluid to flow in multiple directions.
III. Types of Brass Ball Valves
Full Port Brass Ball Valves
Provide an unrestricted flow path, suitable for high-flow applications where minimal pressure drop is crucial.
Reduced Port Brass Ball Valves
Feature a smaller opening in the ball, reducing flow capacity but offering better flow control in low-pressure scenarios.
V-Port Brass Ball Valves
Designed with a V-shaped opening for precise flow regulation, ideal for throttling and metering applications.
Floating Ball Valves
The ball is not fixed and relies on fluid pressure to keep it in place, simple in design but may require additional seals.
Trunnion-Mounted Ball Valves
Utilize trunnions to support the ball, reducing wear and tear, making them suitable for high-pressure and temperature applications.
Understanding the classification and types of brass ball valves empowers engineers and technicians to select the optimal valve for each piping system's unique requirements, ensuring safe, efficient, and reliable fluid control.
