Product Information：

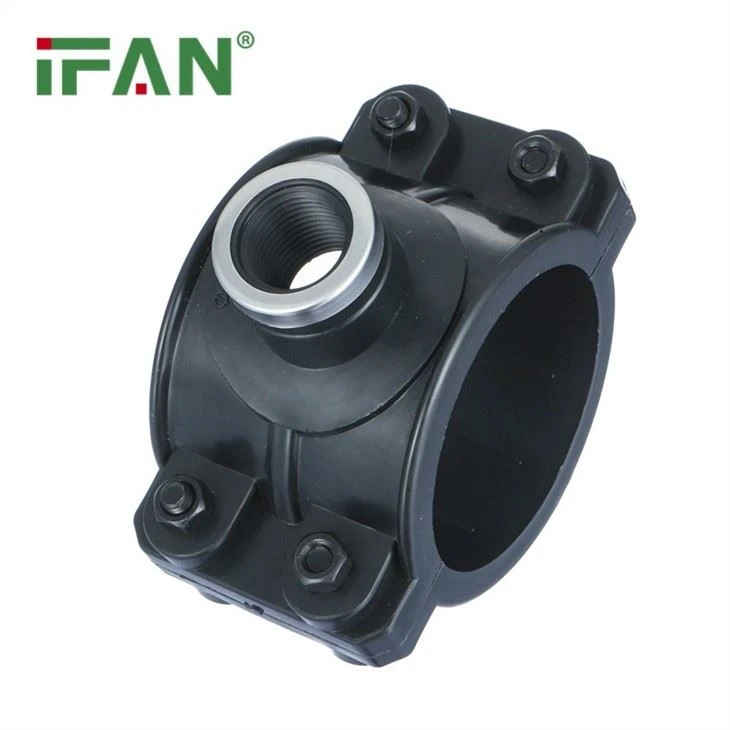

This HDPE Sadle Clamp is made of polypropylene material. The parts are molded by one-time injection molding. It is used for the transition joints between the outlet pipes or branch pipes in the underground drainage pipe network and the inspection well. It is tightly waterproof and prevents leakage.The HDPE Sadle Clamp is completely watertight, extremely simple to use, easy to reuse, frost resistant, suitable for use in direct sunlight and highly impact-resistant.

The components of HDPE Sadle Clamp: saddle support, rubber ring, saddle clamp, nut.

Installation Steps:

1. Make a hole

First, use a hole opener to open the corresponding position on the wellbore to be connected to the branch pipe or the outlet pipe.

2. Set of saddle support:

Put the rubber ring on the saddle support, and then insert the saddle support with the rubber ring into the opened hole from the shaft.

3. Install saddle rubber ring:

After the saddle support is installed, put the saddle press ring on the saddle support from the shaft.

4. Nut fixing:

Put the nut into the support where the pressure ring is installed, and tighten the nut until it is completely sealed with a saddle tightening tool.

Product size：

Size	Pcs/CTN	weight/pcs	CBM
40 × 1/2"	150	87.1	0.046
40 × 3/4"	150	93.1	0.046
40 × 1"	150	98.1	0.046
50 × 1/2"	110	89.0	0.046
50 × 3/4"	110	94.0	0.046
50 × 1"	110	96.0	0.046
63 × 1/2"	70	144.9	0.046
63 × 3/4"	70	147.9	0.046
63 × 1"	70	147.9	0.046
75 × 1/2"	60	195.4	0.046
75 × 3/4"	60	201.4	0.046
75 × 1"	60	202.4	0.046
90 × 1/2"	50	300.0	0.055
90 × 3/4"	50	305.0	0.055
90 × 1"	50	304.0	0.055
90 × 1.1/4"	48	308.0	0.055
90 × 1.1/2"	48	310.0	0.055
90 × 2"	48	315.0	0.055
110 × 1/2"	40	329.5	0.055
110 × 3/4"	40	334.5	0.055
110 × 1"	40	330.5	0.055
110 × 1.1/4"	40	336.5	0.055
110 × 1.1/2"	40	337.5	0.055
110 × 2"	40	340.5	0.055
