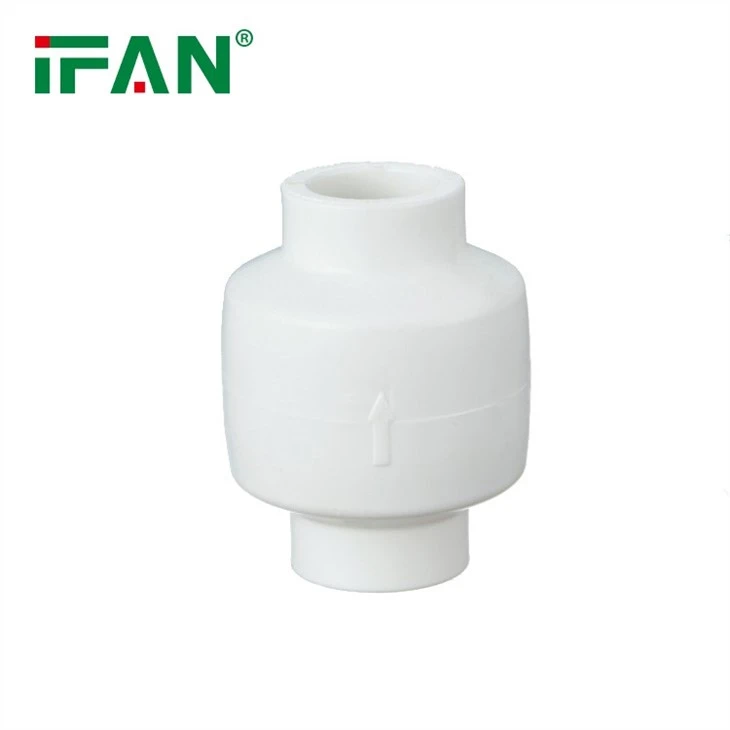

Vertical PPR Check Valve

Information

Classification

According to the structure, it can be divided into three types: lift check valve, swing check valve and butterfly check valve:

1. Lift check valves are divided into two types: vertical and horizontal.

2. The swing check valve is divided into three types: single, double and multiple.

3. The butterfly check valve is a straight-through type.

The above check valves can be divided into four types in connection form: threaded connection, flange connection, welding connection and wafer connection.

Classified by material

1. Cast iron check valve

2. Brass check valve

3. Stainless steel check valve

4. Carbon steel check valve

5. Forged steel check valve

Classified by function

1.DRVZ silent check valve

Stainless steel check valve

Stainless steel check valve

2. DRVG silent check valve

3.NRVR silent check valve

4. SFCV rubber flap check valve

5. DDCV double disc check valve

Check valve selection

1. The installation position of the swing check valve is not restricted. It can be installed on a horizontal, vertical or inclined pipeline. If installed on a vertical pipeline, the flow direction of the medium should be from bottom to top;

2. The swing check valve should not be made into a small-diameter valve, it can be made into a very high working pressure, the nominal pressure can reach 42MPa, and the nominal diameter can also be large, the maximum can reach more than 2000mm. According to the material of the shell and the seal, it can be applied to any working medium and any working temperature range. The medium is water, steam, gas, corrosive medium, oil, medicine, etc. The working temperature range of the medium is between -196--800℃;

3. The applicable occasion for swing check valve is low pressure and large diameter, and the installation occasion is restricted;

4. The installation position of the butterfly check valve is not restricted. It can be installed on a horizontal pipeline, or on a vertical or inclined pipeline;

5. Diaphragm check valve is suitable for pipelines that are prone to water hammer. The diaphragm can well eliminate the water hammer caused by the backflow of the medium. It is generally used on low-pressure and normal temperature pipelines, especially for tap water pipelines, and works with general media. The temperature is between -12-120℃, and the working pressure is less than 1.6MPa, but the diaphragm check valve can achieve a larger diameter, and the maximum DN can reach more than 2000mm;

6. The spherical check valve is suitable for medium and low pressure pipelines and can be made into a large diameter;

7. The shell material of the spherical check valve can be made of stainless steel, and the hollow sphere of the seal can be wrapped with polytetrafluoroethylene engineering plastic, so it can also be applied to the pipeline of general corrosive media, and the working temperature is -101--150 Between ℃, its nominal pressure is ≤4.0MPa, and the nominal passage range is between DN200-DN1200;

8. When selecting check valves for incompressible fluids, the required closing speed must be evaluated first, and the second step is to select the type of check valve that may meet the required closing speed;

9. The check valve for compressible fluid can be selected according to the similar method of check valve for incompressible fluid. If the medium flow range is large, the check valve for compressible fluid can be used A deceleration device, if the medium flow is stopped and started quickly and continuously, such as the outlet of the compressor, a lift check valve is used;

10. The corresponding size of the check valve should be determined, and the valve supplier must provide the data of the selected size, so that the valve size when the valve is fully opened at a given flow rate can be found;
