1. Material Composition and Compliance Standards

The Premium UPVC Elbow Fitting is manufactured using unplasticized polyvinyl chloride (UPVC) resin with a K-value ranging between 66 and 68, which provides the optimal balance between rigidity and processability. The raw material is sourced from certified suppliers and conforms to international standards such as ASTM D1784 (Cell Classification 12454) and ISO 1452-1. To ensure safety and environmental responsibility, the resin used is free from heavy metals such as lead, cadmium, and mercury. Analytical verification includes Fourier-transform infrared spectroscopy (FTIR) and thermogravimetric analysis (TGA) to confirm molecular composition and thermal behavior.IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Instagram Website: www.instagram.com.

2. Injection Molding and Dimensional Accuracy

The elbow fittings are produced via precision injection molding using steel molds with chrome-plated cavities. This ensures consistent wall thickness and dimensional symmetry. Processing temperatures are controlled between 175°C and 190°C, while mold temperatures are kept between 30°C and 50°C to avoid deformation. After demolding, each fitting is cooled under regulated conditions to minimize residual stress. Dimensional inspections are carried out using coordinate measuring machines (CMMs) and digital calipers to verify socket depth, inner and outer diameters, and angle alignment, all within a tolerance of ±0.1 mm.

3. Angular Consistency and Structural Geometry

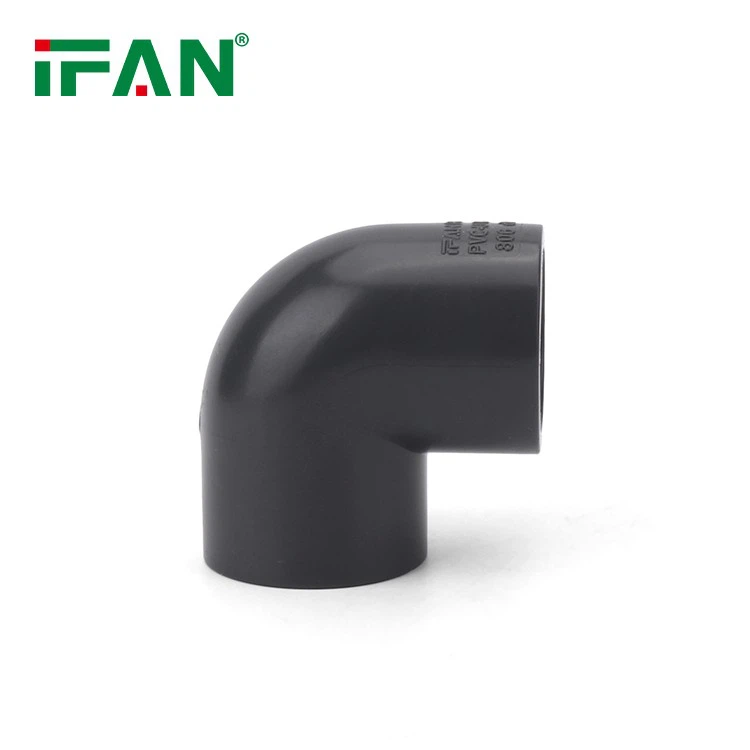

Each Premium UPVC Elbow Fitting is designed with an exact 90-degree or 45-degree bend, depending on the variant. The angle is precisely engineered to ensure smooth fluid direction change while maintaining minimal turbulence. Internal flow paths are optimized to reduce pressure drops, and the elbow radius is proportionally adjusted according to nominal pipe sizes. The fitting also includes a chamfered socket entrance to facilitate solvent welding or push-fit assembly. Wall thickness distribution across the bend is designed to maintain mechanical strength and eliminate weak points.

4. Surface Finish and Internal Smoothness

The interior and exterior surfaces of the fitting are finished to a high degree of smoothness, with internal surface roughness Ra maintained below 1.6 μm. This reduces frictional resistance and helps maintain hydraulic efficiency. The internal bore is free from voids, sink marks, or weld lines. A post-molding cleaning process includes ultrasonic washing to remove mold release agents and particulates. Visual and microscopic inspections are conducted to ensure surface integrity and eliminate any chance of contaminants or manufacturing residue remaining within the water-contact area.

5. Hydrostatic Pressure Resistance and Testing Protocols

Hydrostatic pressure resistance is validated through long-term and short-term tests per ISO 4422 and ASTM D1598/D1599. Short-term burst testing is performed at room temperature and elevated temperatures (up to 60°C) with pressure applied until rupture. Long-term tests involve exposure to internal water pressure at 1.5× the nominal pressure for a duration of 1000 hours. Elbow fittings for pressure class PN10 or PN16 must demonstrate no leakage, deformation, or stress-induced failure. All tests are conducted in controlled environmental chambers to ensure consistency.

6. Impact Strength and Mechanical Integrity

Impact resistance is an essential property for elbow fittings, especially during handling and installation. Charpy or Izod impact tests, as specified in ISO 179 or ASTM D256, are conducted at room temperature and at 0°C. The Premium UPVC Elbow Fitting must withstand a minimum impact energy threshold without fracture. Tensile testing per ASTM D638 confirms tensile strength above 45 MPa and elongation at break exceeding 80%, ensuring flexibility under installation stresses. These properties ensure the fitting can endure external mechanical loads without cracking or failing.

7. Chemical and UV Resistance Properties

UPVC has inherent chemical resistance to acids, alkalis, salts, and alcohols. For assurance, immersion tests are performed in sodium hypochlorite, hydrochloric acid, and sodium hydroxide to monitor weight change, swelling, or discoloration. UV resistance is enhanced through the inclusion of titanium dioxide (TiO₂) in the formulation, which acts as a UV stabilizer. Weathering tests per ASTM D2565 are conducted under xenon arc lamps to simulate outdoor exposure. Fittings are expected to retain mechanical properties and surface color without significant degradation for extended durations.

8. Socket Fit and Joint Compatibility

The socket dimensions are designed in accordance with ISO 1452-3 and ASTM D2466, ensuring seamless integration with compatible UPVC pipes. The socket bore is honed to allow a uniform gap for solvent cement application. Socket retention force is measured through pull-out tests, ensuring that joints remain secure under axial load. For fittings used in mechanical systems, the internal stop ridge ensures accurate insertion depth. Random joint tests are also subjected to leak detection under internal pressure to validate sealing performance.

9. Quality Assurance and In-Process Controls

Each production batch undergoes a structured quality control process beginning with raw material verification and ending with final inspection. Statistical Process Control (SPC) methods are applied to monitor dimensions, weight, and cosmetic defects. Defective parts are automatically ejected using inline vision systems. Test reports are stored with batch numbers for full traceability. IFAN's manufacturing facility operates under ISO 9001:2015 and ISO 14001:2015 certifications. Regular third-party audits and inter-laboratory comparisons ensure objective conformity to international standards.

10. Labeling, Packaging, and Storage Guidelines

All Premium UPVC Elbow Fittings are marked with permanent inkjet codes indicating nominal size, production date, pressure class, and relevant standard reference. Packaging is done in recyclable corrugated boxes with protective inserts to prevent deformation. Each box includes a product information sheet with QR code access to technical data and test reports. Storage should be in a dry, shaded area between 5°C and 40°C, away from direct sunlight and solvents. Under proper storage conditions, the shelf life exceeds five years without performance deterioration.

Conclusion: Engineered for Long-Term Performance

The Premium UPVC Elbow Fitting is the result of advanced polymer selection, precise molding technology, and stringent quality control. Its geometric accuracy, chemical resistance, and pressure durability make it a reliable component in various pressurized systems. Each unit undergoes a series of standardized tests and meets the strictest specifications for potable water and industrial pipeline systems. Designed and produced with durability, safety, and precision in mind, it upholds IFAN's commitment to high-performance piping components.
