1. Raw Material Specifications and Purity Control

The UPVC Tee Connector is manufactured using unplasticized polyvinyl chloride (UPVC) resin, which offers a high level of rigidity and chemical stability. The resin complies with international quality classifications such as ASTM D1784 (cell classification 12454-B) and ISO 1452-1. It is free of plasticizers and heavy metals, such as lead and cadmium, ensuring compatibility with both potable and industrial fluid systems. Each resin batch undergoes chemical composition verification using Fourier-transform infrared spectroscopy (FTIR) and inductively coupled plasma mass spectrometry (ICP-MS) to ensure consistency and purity before processing.IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Facebook Website:www.facebook.com.

2. Molding Process and Dimensional Precision

The production of the tee connector uses high-precision injection molding equipment, allowing for consistent replication of wall thickness, joint diameter, and angular geometry. Molds are made from hardened steel with fine-tolerance cavity surfaces. Injection parameters, including melt temperature, injection pressure, and cooling cycle, are tightly controlled to reduce warping and residual stress. After molding, fittings are trimmed and measured using coordinate measuring machines (CMMs) to confirm adherence to ISO 1452-3 or ASTM D2466 dimensional tolerances, typically within ±0.1 mm.

3. Three-Way Geometry and Flow Design

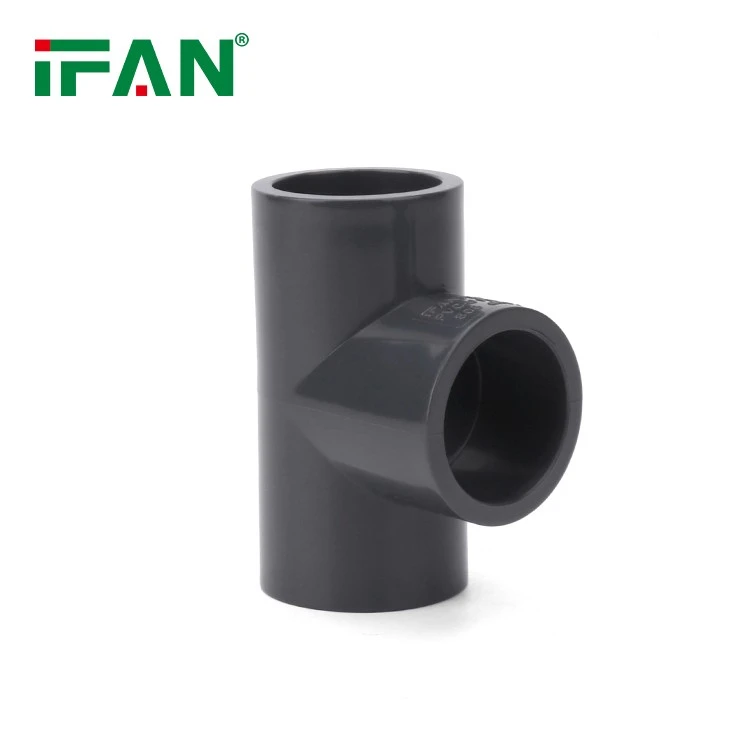

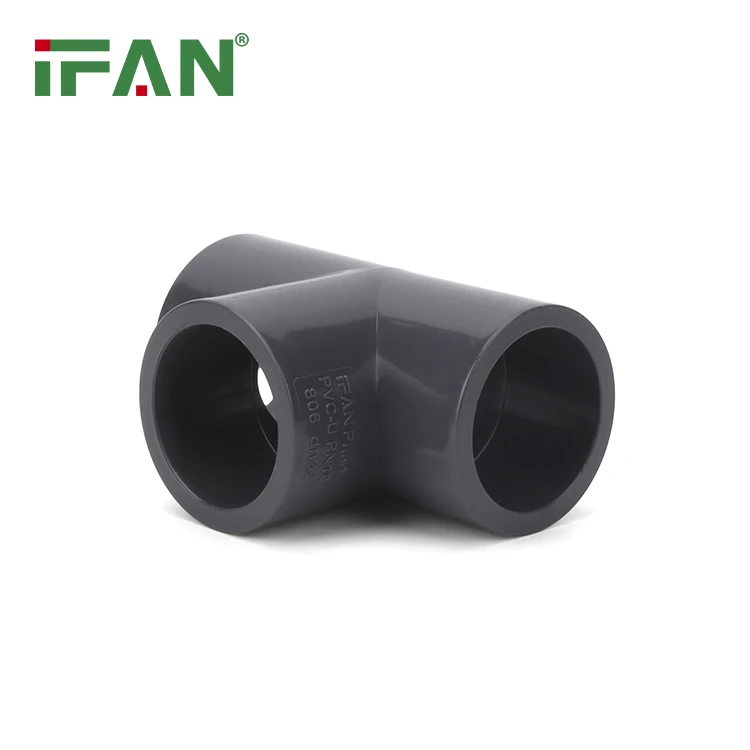

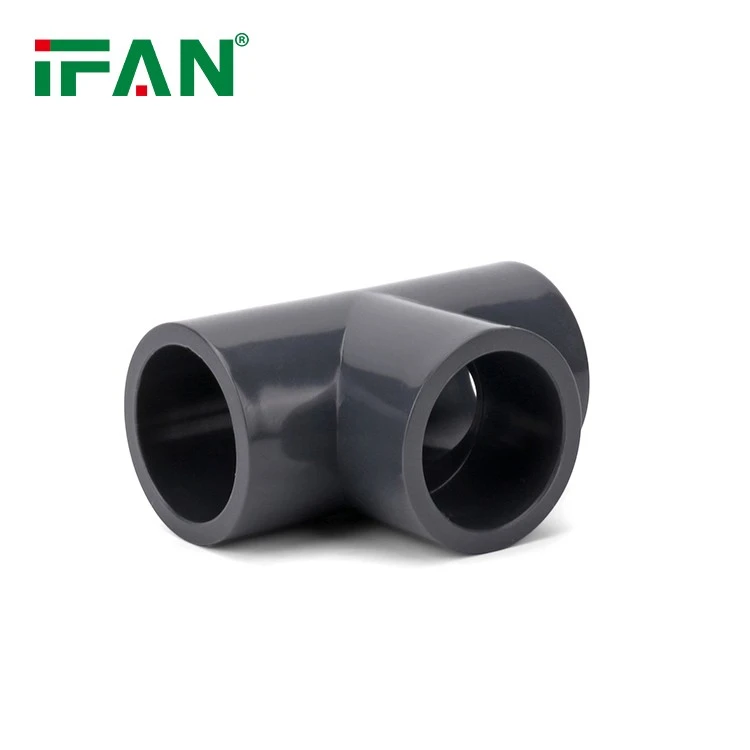

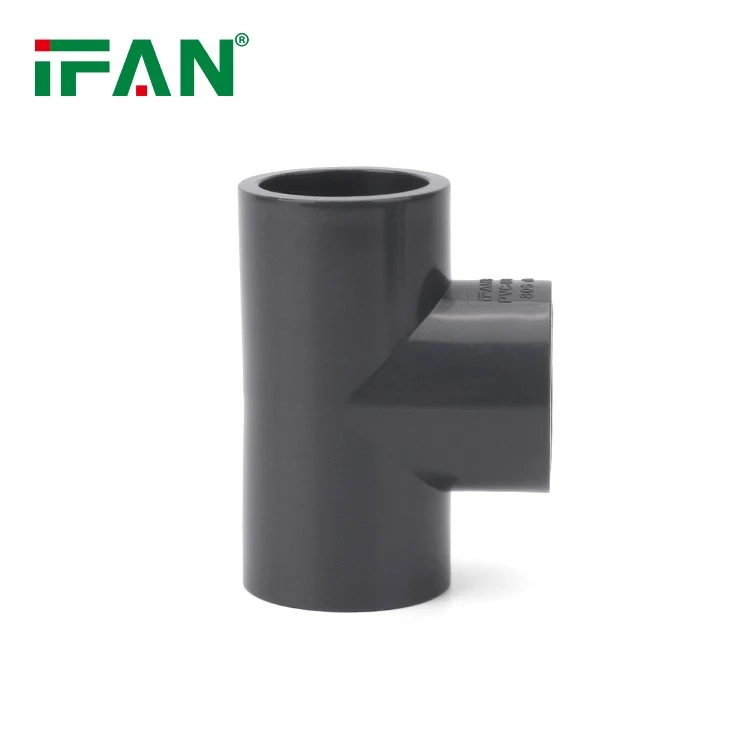

The tee connector features a T-shaped three-way design that enables fluid branching in piping systems. The alignment between the main bore and perpendicular outlet is engineered to maintain a precise 90° angle, with rounded inner transitions to minimize turbulence. Each of the three socket openings is designed to the same nominal size, unless specified otherwise for reducing tees. The flow passage is smooth and symmetrical, with consistent wall thickness across all three ports to prevent stress concentration or thinning during pressure fluctuations.

4. Surface Treatment and Internal Smoothness

After molding, the internal and external surfaces of the UPVC tee connector are smoothed to a surface roughness average (Ra) of less than 1.6 µm. This surface refinement reduces friction loss and inhibits particle accumulation within the system. Ultrasonic cleaning is applied to eliminate residual mold-release agents and micro-debris. Visual and optical inspections are used to confirm surface uniformity, detect imperfections like inclusions or voids, and verify that internal profiles are free of obstructions or flash that may impact fluid flow.

5. Mechanical Properties and Load Testing

The UPVC tee connector demonstrates excellent mechanical performance, verified through tensile, compressive, and impact testing. Tensile strength is measured per ASTM D638, typically exceeding 45 MPa. Compressive resistance ensures that the fitting maintains shape and joint integrity under axial load. Izod or Charpy impact tests (ASTM D256, ISO 179) confirm performance under sudden impact. Additionally, deformation under load is assessed using ISO 2507 to ensure structural stability during long-term installation stress.

6. Hydrostatic Pressure and Seal Integrity Tests

Hydrostatic testing is a key validation for the connector's reliability under pressurized service. The tee fitting is subjected to both short-term burst pressure testing (ASTM D1599) and long-term pressure retention testing (ISO 1167) using water at elevated temperatures and pressures. A standard pressure rating of PN10 or PN16 is maintained, depending on wall thickness and pipe series. Joint integrity is further tested with socket fusion assemblies under cyclic pressure loads to confirm sealing reliability.

7. Chemical Resistance and Environmental Durability

The UPVC material used in the tee connector exhibits resistance to a wide range of chemicals, including acids, alkalis, and saline solutions. Immersion tests are conducted in hydrochloric acid, sodium hydroxide, and calcium chloride to ensure no swelling, cracking, or brittleness occurs after prolonged exposure. For outdoor installations, UV stabilization additives like titanium dioxide are included in the resin formulation. UV aging tests per ASTM D4329 confirm resistance to yellowing and mechanical property degradation under artificial sunlight exposure.

8. Socket Fusion Interface and Fitment Design

The sockets of the tee connector are engineered to accommodate solvent cement bonding or push-fit connection systems. Socket depth, chamfer angle, and internal diameter are manufactured according to standards to ensure full insertion of mating pipes. The stop ridge inside each socket ensures proper insertion depth, while maintaining axial alignment. Pull-out resistance testing validates the joint's holding power against longitudinal stress. Socket tolerances are verified with go/no-go gauges and micrometric tools during quality checks.

9. Quality Assurance, Inspection, and Traceability

Manufacturing follows ISO 9001:2015-certified processes, with strict controls across each production stage. Each production batch is assigned a traceable lot code linked to material certificates, molding parameters, and test reports. Inline inspections include visual checks, dimensional measurements, pressure testing, and random destructive testing. Final products are also tested for vacuum stability, socket integrity, and cosmetic finish. Quality data is recorded and archived digitally for retrieval upon customer or regulatory request.

10. Packaging, Storage, and Marking Standards

The tee connectors are individually bagged or bulk-packed in high-strength cartons with protective separators to prevent deformation during transit. Each fitting is labeled with nominal size, pressure rating, manufacturing date, and conformity to relevant standards (e.g., ISO 1452, ASTM D2466). Laser or inkjet markings are applied on the fitting body and are abrasion-resistant. Storage guidelines recommend keeping fittings in a dry, UV-protected environment between 5°C and 40°C. Under these conditions, the product shelf life exceeds five years.

Conclusion: Engineered for Structural Integrity and Performance

The UPVC Tee Connector exemplifies precision manufacturing and rigorous quality control, making it a reliable component for fluid distribution systems. Its exact three-way geometry, high mechanical performance, and adherence to dimensional and chemical standards ensure it performs consistently under a variety of operating conditions. From resin selection to pressure testing, every step in the production process is designed to deliver durable, high-quality fittings with complete traceability and dimensional reliability.
