Introduction
Underfloor heating systems require pipes that deliver consistent heat, resist corrosion, and maintain structural stability over time. The PEX AL PEX pipe for underfloor heating systems has become a leading choice among installers and homeowners. Its multilayer design combines the flexibility of cross-linked polyethylene (PEX) with the strength and stability of aluminum, making it ideal for both residential and commercial heating applications.IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Facebook Website:www.facebook.com.
What Is a PEX AL PEX Pipe?
A PEX AL PEX pipe is a multilayer composite tube consisting of three key layers:
Inner Layer (PEX): Provides a smooth, corrosion-resistant channel for water circulation.
Aluminum Core: Ensures dimensional stability, acts as an oxygen barrier, and reduces thermal expansion.
Outer Layer (PEX): Protects against mechanical stress, UV exposure, and environmental damage.
These layers are bonded together to form a seamless pipe that delivers reliable performance under high temperatures and pressures commonly found in underfloor heating systems.
Benefits of PEX AL PEX Pipes in Underfloor Heating
1. Excellent Thermal Performance
PEX AL PEX pipes maintain consistent temperature control, ensuring uniform heat distribution across floors. The aluminum layer minimizes thermal expansion, preventing deformation or uneven heating.
2. Longevity and Durability
The combination of PEX and aluminum provides resistance against corrosion, scaling, and chemical damage. Properly installed pipes can last long-term durability according to standards or more, reducing maintenance and replacement costs.
3. Flexible and Easy to Install
PEX AL PEX pipes can bend around corners and obstacles without additional fittings, simplifying installation. The aluminum layer keeps the pipe in shape after bending, allowing precise layout of underfloor loops.
4. Oxygen Barrier Protection
The aluminum core prevents oxygen from entering the system, protecting metal components like boilers, pumps, and radiators from corrosion and prolonging system life.
5. Safe for Water Circulation
The inner PEX layer is non-toxic and compliant with potable water standards, making it safe for systems that combine heating and domestic hot water circulation.
6. Energy Efficiency
Maintaining consistent heat transfer and minimizing energy loss, PEX AL PEX pipes improve the efficiency of underfloor heating systems, reducing overall energy consumption.
Applications of PEX AL PEX Pipes for Underfloor Heating
Residential
Full-home underfloor heating loops.
Bathroom and kitchen radiant floor heating.
Hot water circulation beneath tiles, wood, or laminate flooring.
Commercial
Offices, hotels, and schools with large underfloor heating networks.
Showrooms and healthcare facilities requiring uniform heat distribution.
Industrial
Warehouses and production facilities with radiant floor heating.
Spaces needing corrosion-resistant and high-pressure heating systems.
Comparison With Other Underfloor Heating Pipes
| Pipe Type | Advantages | Limitations |
|---|---|---|
| PEX | Flexible, lightweight | Expands more under heat, less dimensional stability |
| Copper | Durable, high heat tolerance | Expensive, rigid, prone to corrosion |
| CPVC | Heat-resistant | Rigid, difficult to install in complex layouts |
| PEX AL PEX | Flexible, stable, oxygen barrier, long lifespan | Slightly higher material cost |
Installation Guidelines
Pipe Cutting: Use a proper pipe cutter to ensure clean, square ends.

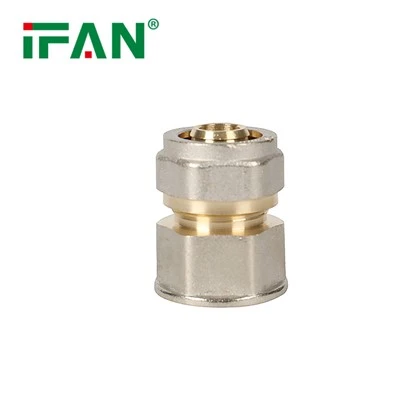

Fittings: Compatible with press, crimp, or compression fittings. Follow manufacturer specifications for torque.
Bending: Maintain minimum bending radius to avoid kinks or damage.
System Testing: Perform pressure and temperature tests before covering the pipes with screed or flooring.
Loop Layout: Plan loops to ensure uniform heat distribution and maintain flow rates.
Maintenance Tips
Periodically check connections for leaks or wear.
Ensure valves and circulators are operating correctly.
Avoid exceeding recommended maximum temperature and pressure.
Flush the system before commissioning to remove debris or air.
Conclusion
The PEX AL PEX pipe for underfloor heating systems offers a combination of durability, flexibility, and thermal stability that is unmatched by traditional piping materials. Its multilayer construction provides corrosion resistance, oxygen barrier protection, and energy efficiency, making it an ideal choice for modern underfloor heating applications. Investing in PEX AL PEX ensures long-lasting, safe, and reliable heating performance for residential, commercial, and industrial projects.
