The DWV UPVC 902 Y Tee is a crucial component in modern plumbing systems. This fitting is designed to handle drainage, waste, and venting applications. Made from unplasticized polyvinyl chloride (UPVC), it combines durability with ease of use. This guide will provide a thorough overview of the DWV UPVC 902 Y Tee, detailing its structure, material properties, uses, installation procedures, and benefits.
Structure and Function

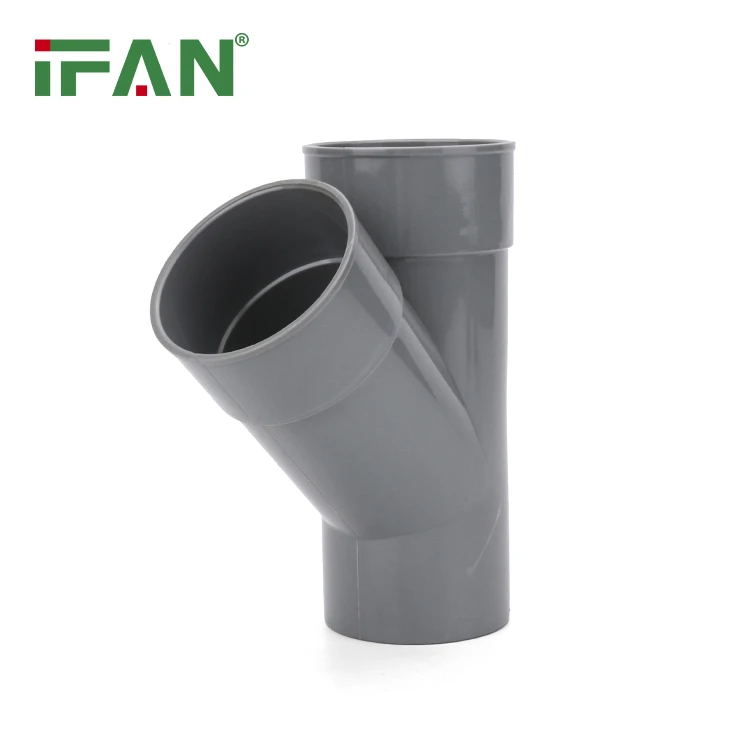

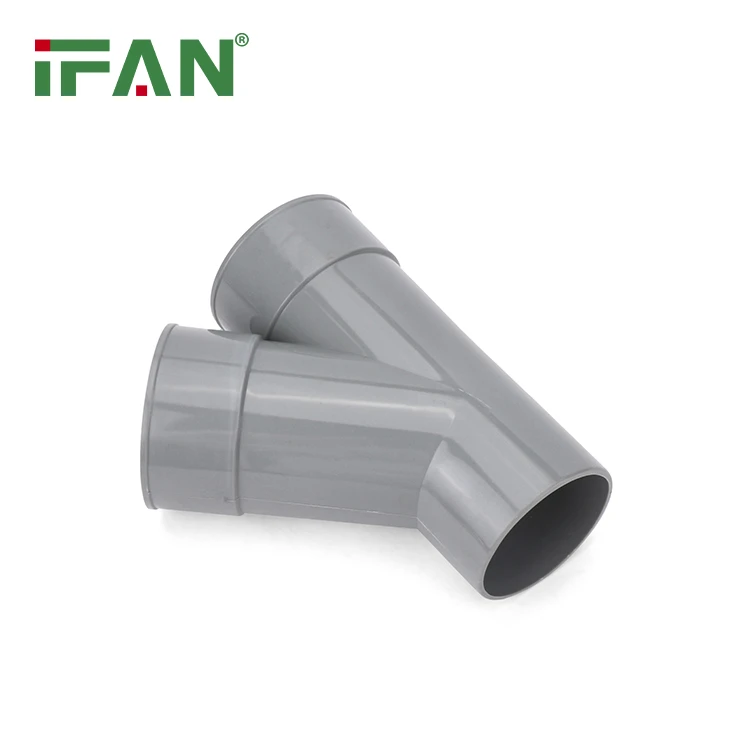

The DWV UPVC 902 Y Tee features a Y-shaped design, which is essential for redirecting fluid flow. This fitting allows pipes to connect at a single point and split or merge the flow of liquids. The "902" in its name indicates a 90-degree angle in the design. This angle helps in managing the flow direction efficiently, reducing resistance, and minimizing potential blockages. For instance, in a home's drainage system, this tee can connect pipes from different sources into one main line.
Material Properties
The DWV UPVC 902 Y Tee is made from UPVC, a type of plastic known for its strength and durability. UPVC stands for unplasticized polyvinyl chloride, which means the material does not contain plasticizers. This makes it more rigid and resistant to deformation compared to other plastics. UPVC is highly resistant to corrosion and does not rust, making it suitable for various environments, including those with high moisture. Its lightweight nature simplifies handling and installation.
Advantages of UPVC
One of the primary benefits of using UPVC for the DWV 902 Y Tee is its excellent corrosion resistance. Unlike metal fittings, UPVC does not corrode or rust, which extends its lifespan. This characteristic is particularly valuable in environments where chemicals or high moisture levels are present. Additionally, UPVC is easy to install and maintain. It is also cost-effective compared to other materials like copper or stainless steel, making it a popular choice for many plumbing systems.
Applications
The DWV UPVC 902 Y Tee is versatile and used in various applications. In residential settings, it connects pipes from sinks, toilets, and showers to the main drainage line. For instance, it might join the drainage lines of a kitchen sink and a dishwasher into a single waste pipe. In commercial and industrial settings, it is used to aggregate waste from different sources, such as in factories or office buildings. Its ability to handle different flow directions makes it an essential component in complex plumbing systems.
Installation Process
Installing the DWV UPVC 902 Y Tee involves several steps. First, ensure that all pipes and fittings are clean and dry. Cut the pipes to the desired length using a pipe cutter. Apply a layer of UPVC primer to the ends of the pipes and the inside of the tee fitting. After priming, apply UPVC cement to both the pipe ends and the fitting. Insert the pipes into the tee and hold them in place for a few seconds to ensure a secure bond. Finally, allow the cement to cure according to the manufacturer's instructions before using the system.
Maintenance Considerations
Maintaining the DWV UPVC 902 Y Tee is relatively straightforward. Regularly check for any signs of leaks or blockages. UPVC fittings are durable, but they should still be inspected periodically to ensure they are functioning correctly. If blockages occur, use appropriate tools or cleaning methods to remove them. Since UPVC is resistant to many chemicals, it typically does not require special cleaning agents. However, avoid using harsh chemicals that could potentially damage the fitting over time.
Example Scenario
Consider a scenario in a new residential construction where multiple bathrooms are being installed. Each bathroom will have a sink, shower, and toilet. The DWV UPVC 902 Y Tee can be used to connect the individual waste lines from these fixtures to a single main drain pipe. This setup not only simplifies the plumbing design but also ensures efficient waste removal. By using the DWV UPVC 902 Y Tee, the plumber can achieve a streamlined and effective drainage system that minimizes potential issues.
Limitations and Considerations
While the DWV UPVC 902 Y Tee offers many advantages, it also has limitations. UPVC can become brittle in extremely cold temperatures, which may lead to cracking. Additionally, it is not suitable for applications involving extremely high temperatures or highly corrosive substances. It is essential to evaluate the specific needs of your plumbing system and consider these factors when choosing materials. For applications involving high temperatures or aggressive chemicals, alternative materials may be more appropriate.
Conclusion
The DWV UPVC 902 Y Tee is a vital component in many plumbing systems, offering a reliable solution for managing drainage and waste. Its UPVC construction provides durability, corrosion resistance, and ease of installation. By understanding its structure, benefits, and proper installation procedures, you can effectively utilize this fitting in various applications. While it is generally low-maintenance and cost-effective, be mindful of its limitations to ensure it meets the requirements of your specific plumbing needs.
