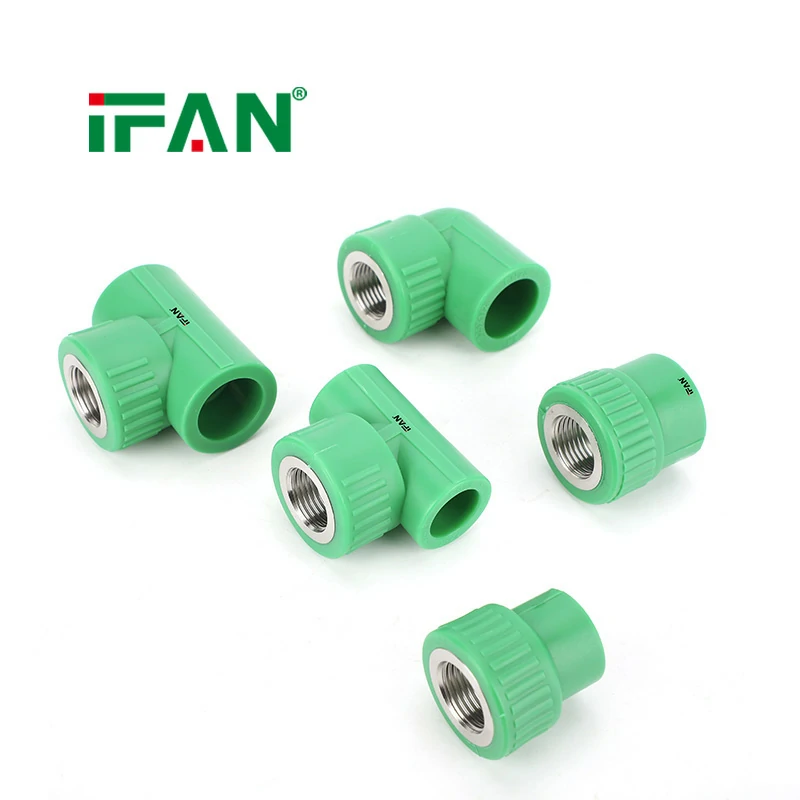

Low Price Stainless Steel PPR Fitting

Temperature Limits of the PPR Socket

The stainless steel insert itself can handle extremely high temperatures (over 200°C), but the PPR socket is the limiting component. Standard PPR (PP-R) operates continuously at 70°C (158°F) with intermittent peaks up to 95°C (203°F). For high-temperature hot water systems such as boiler feed lines, solar thermal circuits, or district heating, verify that your actual operating temperature stays within 95°C maximum. For continuous operation above 80°C, consider PP-RCT (improved temperature resistance) or all-metal fittings.

Pressure Derating at Elevated Temperatures

As temperature increases, the pressure rating decreases. A PN20 fitting rated for 20 bar (290 psi) at 20°C drops to approximately 12-14 bar (175-200 psi) at 70°C, and further to 8-10 bar (115-145 psi) at 90°C. For high-temperature applications, select a fitting with a higher base PN rating (PN20 or PN25 rather than PN16) to ensure adequate safety margin after derating. Calculate using manufacturer-provided derating factors – typical factor at 90°C is 0.4-0.5 of the 20°C rating.

Thermal Expansion Management

PPR pipe expands significantly with temperature – approximately 0.15-0.2 mm per meter per 10°C. For a 10-meter run at 80°C (60°C rise above room temperature), expansion is 9-12 mm. Stainless steel has much lower thermal expansion (approx. 0.016 mm/m/°C). This mismatch means the stainless steel fitting does not expand as much as the PPR pipe. If the pipe is rigidly fixed, stress concentrates at the fitting. Prevention: install expansion loops, U-bends, or sliding supports every 5-8 meters to absorb pipe movement. Never rigidly anchor the pipe immediately next to a stainless steel fitting.

Fitting Embedment Integrity Under Thermal Cycling

Repeated heating and cooling cycles (thermal cycling) stress the interface between the stainless steel insert and the PPR socket. Because the two materials expand at different rates, micro-gaps can develop over thousands of cycles, leading to leaks. For systems with frequent thermal cycling (e.g., solar thermal or recirculating hot water that turns off at night), choose fittings with a deeper PPR socket and a roughened or undercut stainless steel insert design that locks into the PPR. Avoid smooth, unfeatured inserts.

Recommended Applications for High-Temperature Use

Stainless steel PPR fittings are well-suited for: boiler feed lines (up to 90°C intermittent), solar water heater circuits (can reach 95°C on stagnation days), recirculating hot water loops in large buildings, industrial hot water washdown systems, and district heating branch lines. They are not suitable for: steam lines (100°C+), superheated water (above 100°C), or systems that exceed 95°C even briefly – the PPR will soften and the fitting will blow off.

Installation Tips for High-Temperature Systems

When installing stainless steel PPR fittings for hot water: use PN20 or PN25 fittings for safety margin; allow extended cooling time after fusion (add 30-50% to standard cooling times because the fitting retains heat); install expansion joints or loops before and after each rigid anchor point; use pipe insulation to reduce heat loss and thermal stress; and pressure test with hot water (or at least warm water, 50-60°C) to simulate operating conditions – testing with cold water may not reveal leaks that only appear when the system is hot.

Summary

High-temperature hot water (70-95°C) requires stainless steel PPR fittings with PN20/PN25 rating and derated pressure capacity (approx. 0.4-0.5 factor at 90°C). Manage thermal expansion with loops and sliding supports – PPR expands much more than stainless steel. Thermal cycling stresses the insert-socket interface; choose fittings with locking features. Suitable for boiler feeds, solar thermal, recirculating loops. Not for steam or above 95°C. Test with hot water.
